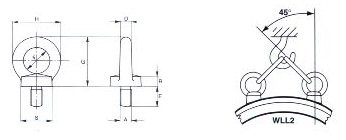

Śruby z uchem metaliczne DIN 580 8040N

A

mm

P delta

mm

D

mm

E

mm

F

mm

G

mm

H

mm

R

mm

S

mm

WLL1

mm

WLL2

mm

M6

1

6

11,0

14

27

26

6

14

75

50

M8

1,25

8

13,0

20

36

36

6

20

140

95

M10

1,5

10

17,0

25

45

45

8

25

230

170

M12

1,75

12

20,5

30

53

54

10

30

340

240

M14

2

12

20,5

30

53

54

10

30

460

320

M16

2

14

27,0

35

62

63

12

35

700

500

M18

2,5

14

27,0

35

62

63

12

35

850

600

M20

2,5

16

30,0

40

71

72

14

40

1200

830

M22

2,5

16

30,0

40

71

72

14

40

1500

1000

M24

3

20

36,0

50

90

90

18

50

1800

1270

M27

3

21

41,0

55

100

96

18

55

2700

1900

M30

3,5

24

45,0

60

109

108

22

65

3600

2600

M33

3,5

28

54,0

70

128

126

26

75

4300

3000

M33F

2

28

54,0

70

128

126

26

75

4300

3000

M36

4

28

54,0

70

128

126

26

75

5100

3700

M36F

3

28

54,0

70

128

126

26

75

5100

3700

M42

4,5

32

63,0

80

147

144

30

85

7000

5000

M42F

3

32

63,0

80

147

144

30

85

7000

5000

M48

5

38

68,0

90

168

166

35

100

8600

6100

M48F

3

38

68,0

90

168

166

35

100

8600

6100

M56

5,5

42

78,0

100

187

184

38

110

11500

8300

M56F

4

42

78,0

100

187

184

38

110

11500

8300

M64

6

48

90,0

110

208

206

42

120

16000

11000

M64F

4

48

90,0

110

208

206

42

120

16000

11000
